Picture-Tour
& description of the vehicle

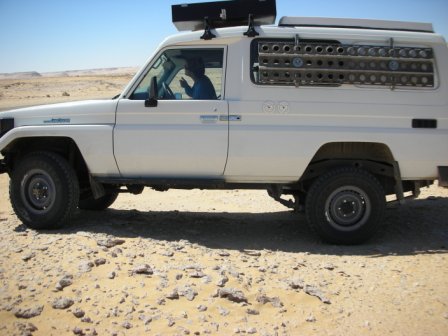

Toyota Land Cruiser
HZJ78L-RJMRS - new on Dec 1st, 2006
4.2 liter, 6 cylinder diesel engine,
96 KW (=129 BHP), 12 Volts electrics, air-conditioning
Cyclone type air cleaner with snorkel, double fuel filter
Interior enables living inside, bed
142 x 182cm, table to sit 4 people, popup roof to stand in rear area,
refrigerator, gas stove with 2 flames, sink with 1 water tab for filtered
water and 1 tab unfiltered, heater for the night. More storage space
than we needed.
280 liter diesel capacity (range up
to 2'500km)
120 liter water in tanks plus 2 x 20
liter water bags and a 22 liter water container

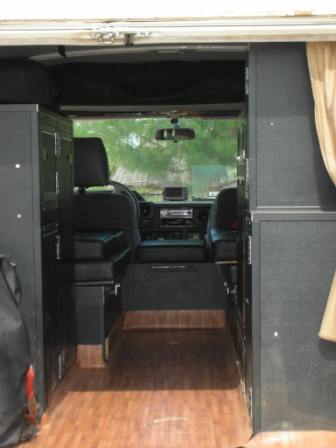

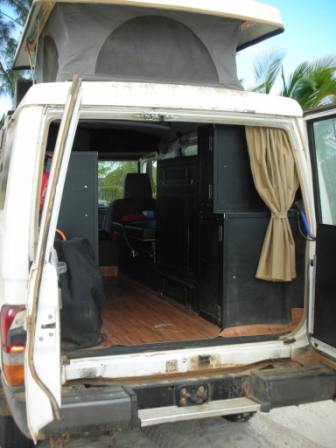

View from back door
Interior is black so it is less visible
from the outside. Our concept is to have a discreet vehicle in
order to not attract attention. It seems it worked - nothing was
ever stolen and people did not seem curiously looking inside.
Everything has to fit in closets, there is
not supposed to be anything lying around, because:
-
it makes moving around inside more
comfortable
- things don't break as they don't fly around
- it does not attract thieves
- things don't get dusty/dirty
|

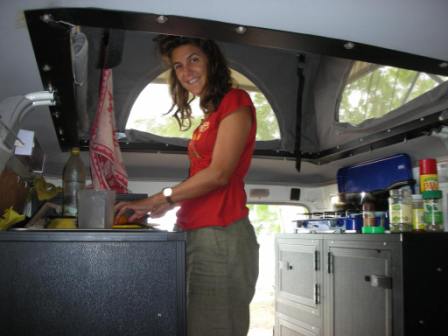

Popup roof enables standing in the rear
part. It is much more comfortable to stand while cooking or
cleaning up. It also reduces heat inside, as warm air rises. We
sleep down, so it is a bit cooler in our bed.
However, we do not need to open the roof
for anything else than comfort. This is practical, such as in a
sandstorm, a noisy place or when we want to be discreet in an
inhabited area, like a city. |
The popup roof has 3 windows with mosquito
nets, so we can keep them open if it is not too cold.
The plastic floor is easy to sweep. We do
not take off our shoes to go inside. |

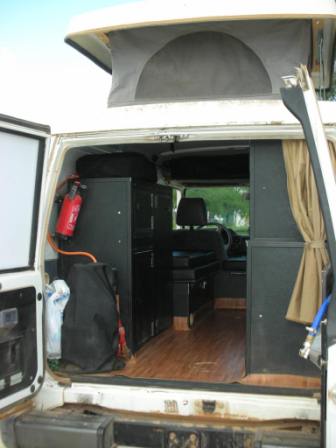

On the left side is a 10kg propane gas
bottle (where the orange hose comes from) - it lasted during our
whole 7 month Africa trip.
In the mornings we however used a little
alcohol burner which we can put on the table - we find that more
convenient as we don't have to stand up from the table which is
usually outside. |

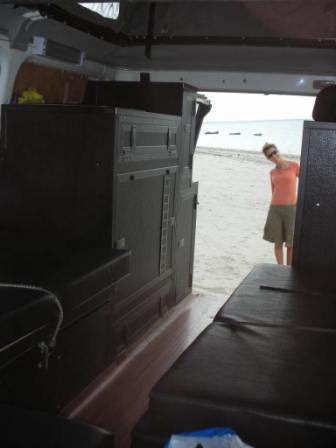

View from the driver's seat towards the
back door.
In the left cupboard is
the sink on top,
toiletries &
medicines below and
further down an Engel 35 liter compressor
refrigerator on a roll-out shelve.
Under the refrigerator is a 12V air compressor
(for pumping tires), tire levers, the main part of the AirJack
(a big pillow that can lift the vehicle), the table pole and
Reto's shoes.
In the closet behind, which is a bit
higher, are clothes.
The cushions over the benches in the
foreground are part of the bed. Under the benches are big
storage boxes fitting the equivilent of 6 banana boxes. |

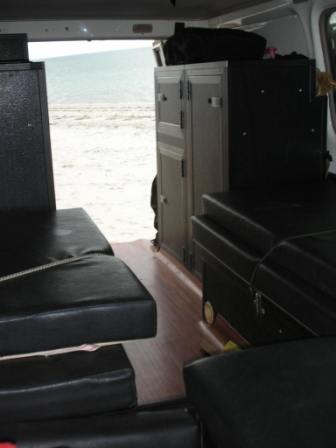

View from the passenger seat toward the
back door.
On
top is a 2-flame gas stove
In the first cupboard is all the kitchen
material, including a pressure cooker, a special pot that can
bake, one alcohol burner stove set incl. 2 pots, 1 pan & 1
kettle (Trangia), a multifuel stove (should work with diesel), a
few litres of milk and other food items.
The rear cupboard in the top has a spare
engine air filter (large and light) and more clothes from
Victoria.
Below is a multi-purpose storage (we shifted things
between that closet and the benches in the foreground), but
basically it held a normally empty 22 litre water container (we
will not take it on another trip), Victorias shoes, some small
spare parts items (like lightbulbs) and a toilet ring/seat.
Laundry was also put there if space allowed, otherwise we put
the black bag over the gas bottle. |

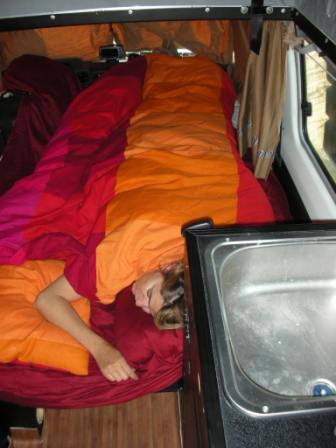

The bed
It is between the
front window and the
cupboards and over the whole width of the vehicle. The front seats
can be folded completely down (they are Land-Rover).
However, we keep the driver seat tilted
against the steering wheel, so we could drive away within
seconds.
One person therefore sleeps a bit
sideways, as the feet of both persons are more or less over the
passenger seat.
In the right lower corner of the picture
the sink is visible, 36 x 36 cm |

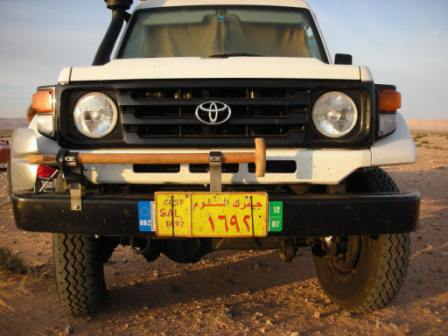

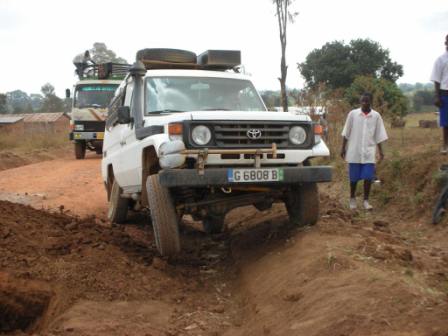

Shovel, attached on the front bumper. We
wanted to move as much weight as possible to the front of the
vehicle, as it tends to be much heavier on the rear axle. Also,
this is a convenient location for getting the shovel when stuck. |

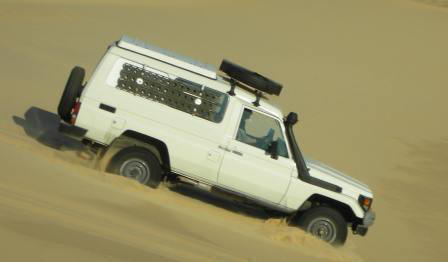

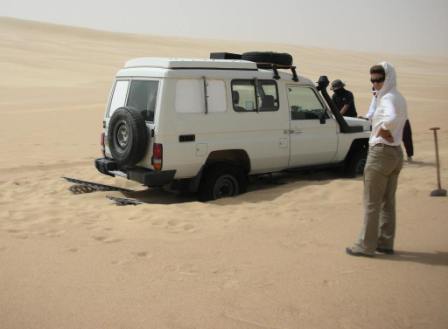

Sand plates (here being used). We had 2 on
each side, so every wheel can be supported. As you can see on
many pictures, they are transported on the side and covering the
rear side-windows. We felt it protected the windows from looking
inside in a discreet way, and we could still look outside
through the holes.

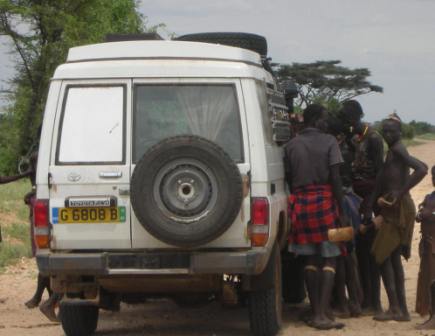

Also, in case of stones being thrown at
us, it might protect the glass (however, this did not really
happen to us - but we met people who's vehicles had been hit by
kids throwing rocks) |

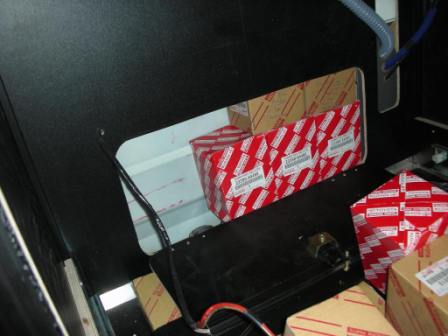

The Land Cruiser has considerable space
between the inner and outer walls. We were able to fit most of
our spare parts (mainly consumables such as oil and fuel
filters) in-between, as our closets have openings on the back
(the picture shows the access behind the fridge). Also things
like empty water-bags (Swiss Military) and diving masks fit
well. |

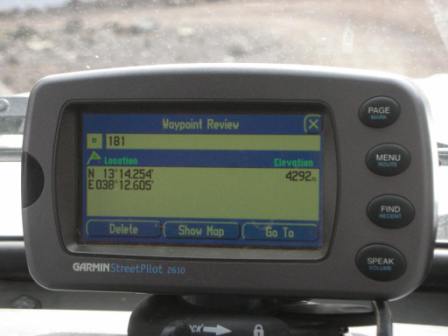

GPS - Garmin StreetPilot 2610
We found an older model which cost 1/3 of
the new price, but still has the functions that are useful for
overland trips, in particular storing 500 waypoints, tracking
the route driven for about 2 days, loading maps, and being
vibration and water proof (this model is also sold for
motorcycles).
We had
www.tracks4africa.co.za
maps as of Kenya and wished we had them also before. |
Long range fuel tank. We bought the
vehicle with the standard 2 x 90 liter tanks, but then exchanged
the rear tank against one of 180 liters - enlarging our normal
fuel capacity to a total of 270 liters, all under the vehicle
(keeping center of gravity low).
Each tank can work individually, which
would be important if one leaks or has fuel of poor quality
(water or dirt). I mention this as some systems work by filling
fuel from a second tank into a main tank |
2 independent water tanks under the
vehicle of 60 liters each.
fillers
They
are located between the front 90 liter fuel tank and rear 180
liter fuel tank. The original exhaust pipe must be removed as
the huge silencer is otherwise in the way |
Short
exhaust pipe
Gives space for mounting 2 x 60 liter
watertanks and saves 25 kg vs original exhaustpipe. Also, it is
said to increase engine power by some 6 BHP. However, we do find
it a bit noisy. As both the air intake (via snorkel) and exhaust
is on the same side, we sometimes closed the window while
driving due to noise |
Super-Heavy-Duty suspension (by OME). It
is designed to carry an additional permanent load of 500kg vs
the original heavy duty suspension. We are the only ones we met
on the trip through Africa that had no problems with the
suspension or shock absorbers.
Fully loaded (incl. people) we are
3'400kg, which would be the limit of the original suspension.
The risk of damages when driving in severe conditions is then
significantly increased. |

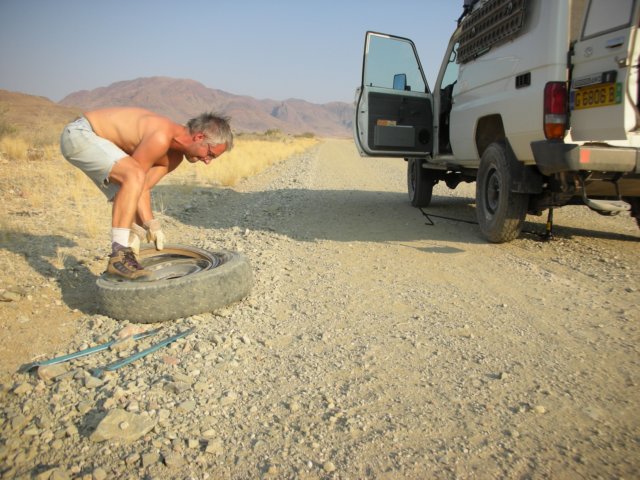

6 tires and 5 rims in total. Thanks to split
rims, it is not very difficult to take tires off the rim and put
a spare tube inside.
Our trip through Africa was about 40'000km
(of which about 20'000km not on sealed roads), we used up our 6
tires. Had we had only 5, we might have had to purchase one on
the way. While that would have been possible, it might not have
been ideal as finding the same profile would have been pure
luck, however, we drove on the original 7.50 x 16 tires, which
is the most common size in the developing world. |

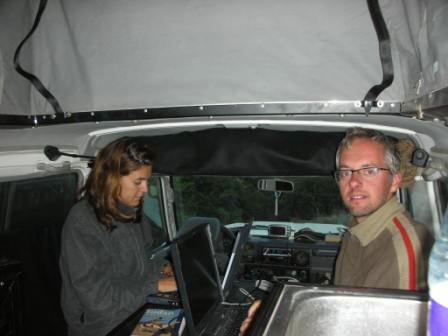

2 laptop computers. Usually, we both wanted
to work on a computer at the same time, so it was ideal. We spent
quite some time making our website. Having two computers is also
good as you can make a backup from one to the other - or if one
fails, you are not completely lost.
Wireless is useful, as even in places like
Khartoum we found free hotspots (such as in a luxury hotel
lobby)
In the picture you can also see how we can
sit at the table in the vehicle |

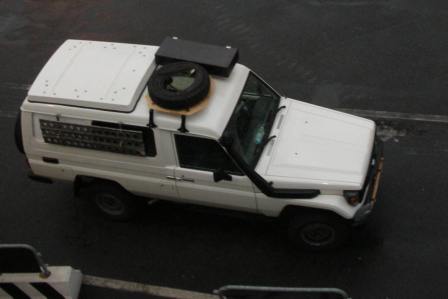

Roof
Rack Box
for 2 camping chairs
Spare tire (no rim), into which a 10 liter jerrycan fits
Chairs are among the most frequently used items, so
access to them should be easy. They are light, so it is OK on
the roof.
The spare tire did not fit well anywhere else, and without
the rim, its weight is reasonable. The 10 liter jerry can was
usually only half-filled, and eventually, we could fit it inside
the vehicle and use the space for fire-wood |
|
